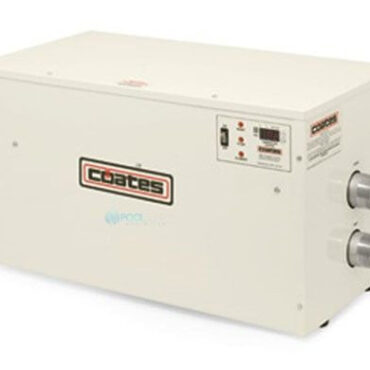

Coates Electric Heater 45kW Three Phase 480V (1 in Stock)



Product Description

Coates 45kW 480V Three Phase
These pool and spa heaters feature a built-in flow switch to prevent operation when there is no water flow and allows operation at flow rates between 20 GPM and 80 GPM. An all stainless steel tank for long life and corrosion resistance is also standard. These heaters can be used for residential or commercial applications.
Standard Features
  • Incoloy heating elements
  • Close differential thermostat
  • Manual reset high temp limit
  • Digital thermostat
  • Flow switch
  • 2″male NPT connections PHS
  • Stainless steel tank
  • Heavy duty contactors
  • Element, flow and high temp “on” lights
  • Element fusing on units rated over 48 amps

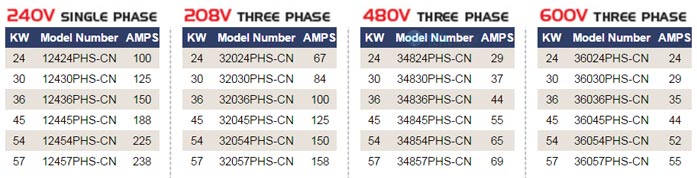

Technical Data
  • PHS: 28”L x 15”W x 15”H (100 lbs.)
  • Min. Flow Rate: 20 GPM
  • Max Flow Rate: 80 GPM
  • UL Listed for indoor/outdoor Installation
